Ceramic Rings Zirconia Machinable
Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
Sizes：Custom according to the drawings
Delivery times：2 -25 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
Customized：Can be custom for special sizes and shapes
Ceramic plates sheet substrate disc series

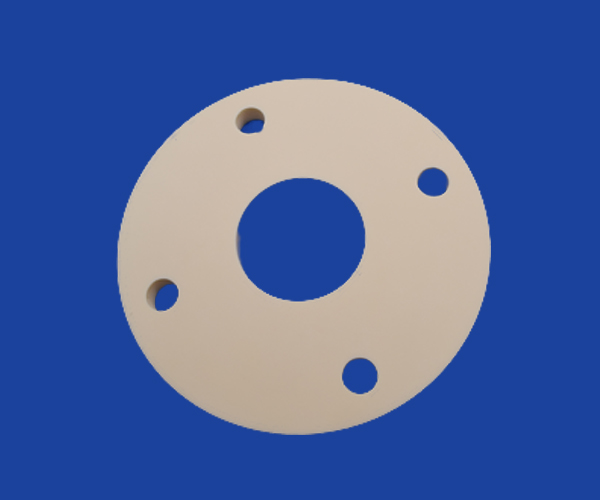

ZrO2 Ceramic Rings Excellent Insulation And Temperature Resistance Zirconia Ceramic Seals
We are engaged in manufacturing and supplying Ceramic Seals. Ceramic Seals exhibits high hardness, good abrasion resistance, high strength, and stability. These products are developed incorporating sophisticated technology and are made available to patrons at market leading prices.
Company Advantage
OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.
Zirconia (ZrO2 & Zirconium Oxide) is a unique advanced ceramic. Products manufactured from zirconia ceramic exhibit superior mechanical properties such as high strength and flexibility. Heat insulating properties and oxygen-ion conductivity indicate zirconia has potential for use in a wide variety of applications - everything from telecommunications to the new energy of the future and environmentally beneficial products.
Depending on doping material different material properties could be achieved because of influencing the Yttria's microstructure. The "Ceramic Steel" titled Zirconia is doped with Yttria forming an ultra-fine ductile structure with sub-micron grain formation leading to enormous bending strengths. Magnesia doped qualities are less strong also showing a coarser microstructure.
Advantages:
1). Excellent insulation, security, long working life.
2). High temperature resistance
3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). High hardness
Ceramic materials
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide
· Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
....
| Properties | Units | AL2O3 | ZrO2 | SiC | Si3N4 |
| Density | g/cm³ | 3.65-3.93 | 5.95-6.0 | 3.12 | 3.23 |
| Water absorption | 0 | 0 | 0 | 0 | 0 |
| Coefficientof thermal expansion | 10-16/k | 7.9-8.5 | 10.5 | 3 | 3.2 |
| Modulus of elasticity young`s mod | GPa | 280-340 | 210 | 440 | 300 |
| Poission`s ratio | / | 0.21-0.22 | 0.3 | 0.17 | 0.26 |
| HV hardness hv | MPa | 1650 | 1300-1365 | 2800 | 1500 |
| Flexural strength | MPa | 310 | 950 | 390 | 720 |
| Flexural strength(700℃) | MPa | 230 | 210 | 380 | 450 |
| Compressive strength | MPa | 2200 | 2000 | 1800 | 2300 |
| Fracture toughness | MPa*m1/2 | 4.2 | 10 | 3.9 | 6.2 |
| Heat conductivity | W/m*k | 26-30 | 2-2.2 | 120 | 25 |
| Electrical resistivity | Ω*mm2/m | >1016 | >1015 | >103 | >1013 |
| Max use temperature | ℃ | 1750 | 1050 | 1550 | 1050 |
| Resistance to acid alkaline | / | high | high | high | high |
| Dielectric constant | / | 9.6 | 29 | 9.66-10.03 | / |
| Dielectric strength | KV/mm | 8.7 | 9 | / | / |
| Thermal shock resistance | △T（℃） | 180-220 | 280-350 | 230-260 | / |
| Tensile strength | MPa | 248 | 250 | / | / |
| Precision of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
| Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface | |
Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic sheet,plates,block or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
