Ceramic rods multi szies hot sell 1mm 1.6mm 2.1mm 3.4mm 1.4mm 1.5mm alumina zirconia silicon rod tubes sticks
Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC
Sizes：Mini-OD: 0.02mm;Max-length: 500mm
Delivery times：2 -25 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation
Customized：Can be custom for special sizes and shapes
Ceramic plates sheet substrate disc series

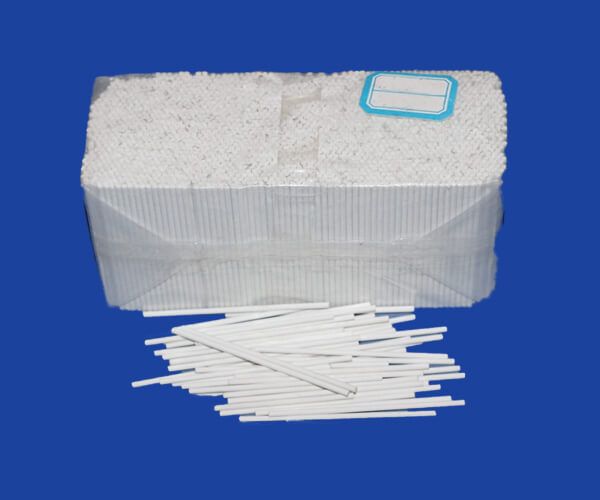

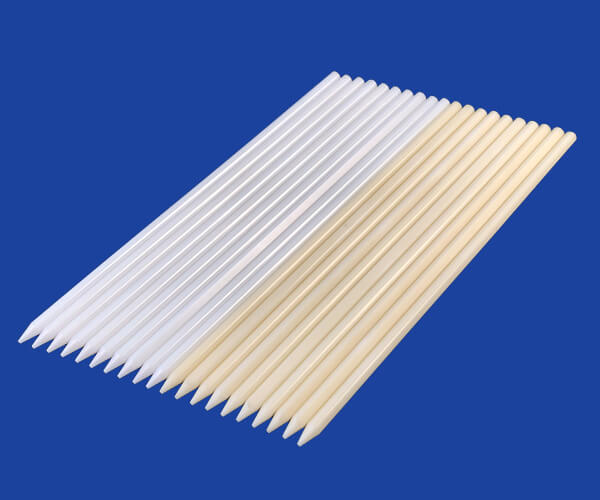

Ceramic Rod Alumina Zirconia Rods
As a Professional Advanced Technology Ceramic Manufacturers, Us Support To Customize Different Specifications Of Ceramic Components
Brief Introduction:
Ceramic rod has the characteristics of high temperature resistance, cold resistance, wear resistance, corrosion resistance, electromagnetic insulation, non-oil self-lubrication, high speed and so on.It is widely used in aviation, aerospace, navigation, petroleum, chemical industry, automobile, electronic equipment, metallurgy, electric power, textile, pump, medical equipment, scientific research, national defense and military and other fields. It is a high-tech product for the application of new materials.
we can produce ceramic rods of different sizes, not limited to the following table.
The sizes of some ceramic rods are as follows :
| Outer Diameter(Inch) | Outer Diameter(mm) | Length(mm)(in) | |
| 0.011 | 0.28 | 10 | 0.39 |
| 0.02 | 0.51 | 19 | 0.75 |
| 0.022 | 0.56 | 150 | 5.91 |
| 0.024 | 0.61 | 210 | 8.27 |
| 0.096 | 2.44 | 230 | 9.06 |
| 0.011 | 0.28 | 80 | 3.15 |
| 0.02 | 0.51 | 20 | 0.79 |
| 0.022 | 0.56 | 34 | 1.34 |
| 0.024 | 0.61 | 53 | 2.09 |
| 0.096 | 2.44 | 75 | 2.95 |
| 0.125 | 3.18 | 90 | 3.54 |
| 0.137 | 3.48 | 130 | 5.12 |
| 0.083 | 2.1 | 110 | 4.33 |
| 0.047 | 1.2 | 95 | 3.74 |
| 0.126 | 3.2 | 84 | 3.31 |
| 0.157 | 4 | 340 | 13.39 |
| 0.236 | 6 | 210 | 8.27 |
| 0.188 | 4.78 | 110 | 4.33 |
| 0.197 | 5 | 95 | 3.74 |
| 0.212 | 5.38 | 84 | 3.31 |
| 0.25 | 6.35 | 340 | 13.39 |
| 0.264 | 6.71 | 210 | 8.27 |
| 0.327 | 8.3 | 110 | 4.33 |
| 0.339 | 8.6 | 95 | 3.74 |
| 0.354 | 9 | 84 | 3.31 |
| 0.433 | 11 | 340 | 13.39 |
| 0.551 | 14 | 210 | 8.27 |
| 0.64 | 16.26 | 180 | 7.09 |
| 0.75 | 19.05 | 360 | 14.17 |
| 0.775 | 19.69 | 440 | 17.32 |
| 1.1 | 27.94 | 520 | 20.47 |
| 1.35 | 34.29 | 340 | 13.39 |
The shapes of the ceramic rods we produce are as follows:
round, hexagon, square, semicircle, polygon, hole, etc. Can be customized
Dimension and Tolerance:
● Diameter as small as 0.2mm， depends on length
● Diameter tolerance we could make as fine as 0.001mm
As for the price, please provide the detailed requirements of the ceramic rod to us, such as: size, region, quantity, whether to customize and so on.If you provide detailed information, we will check all the costs and the delivery time is faster.
Custom service:
We are a professional manufacturer of ceramic rods, selling hot sizes of ceramic rods in stock, also support to customize different specifications of ceramic rods, according to the parameters or drawings provided by the customer.
Specification:
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength, Wear Resistance Up To Mohz 9.0; HRA 80-90...
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Life...
9. Other excellent property
Type of ceramic rod us manufacturer (including but not only belows)
Shaft plunger | Pump plunger |
Wear rod | Filling Pump plunger |
Pins rod | Water Pump plunger |
Piston rod | Plunger rod |
Shaft rod | Sleeve and bushing rod |
Machinable rod | Others |
Tip: | |
| Properties | Unit | Alumina (AL2O3) | Zirconia(ZrO2) | ||||
| AL2O3≥95 | AL2O3≥99 | AL2O3≥99.5 | AL2O3≥99.8 | ZTA | YTZ | ||
| Volumetric density | g/cm³ | 3.7 | 3.80-3.85 | 3.85 | 3.9 | 3.8-4.6 | 6 |
| Hardness | HRA≥ | 86 | 88 | 88 | 88 | 86-88 | 88-90 |
| Flexural Strength | Mpa≥ | 300 | 350 | 400 | 400 | 172-450 | 900 |
| Maximum temperature | ℃ | 1500 | 1500 | 1500 | 1500 | 1400-1500 | 1500 |
| Line expansion coefficient | ×10-6/℃ | 7.5 | 8.2 | 8.2 | 8.2 | ||
| Dielectric constant | εr(20℃,1MHz) | 9 | 9.2 | 9.2 | 9.2 | ||
| Media loss | tanδ×10-4,1MHz | 3 | 2 | 2 | 2 | ||
| Volumetric resistivity | Ω·cm(20℃) | 1013 | 1014 | 1014 | 1014 | 1013 | 1014 |
| Breakdown strength | KV/mm,DC≥ | 20 | 20 | 20 | 20 | ||
| Acidic resistance | mg/cm²≤ | 0.7 | 0.7 | 0.7 | 0.7 | ||
| Alkaline resistance | mg/cm²≤ | 0.2 | 0.1 | 0.1 | 0.1 | ||
| Abrasion resistance | g/cm²≤ | 0.2 | 0.1 | 0.1 | 0.1 | ||
| Compressive strength | Mpa≥ | 2500 | 2500 | 2500 | 2800 | 2300-2900 | 2500 |
| Flexural Strength | Mpa≥ | 200 | 350 | 350 | 350 | ||
| Elastic modulus | Gpa | 300 | 350 | 350 | 350 | ||
| Poisson-Pine ratio | 0.2 | 0.22 | 0.22 | 0.22 | |||
| Thermalcoefficient | W/m·K(20℃) | 20 | 25 | 25 | 25 | ||
Precision of manufacture | |
Dimensional accuracy | Up to 0.001mm |
Smoothness | Highest possible mirror |
Concentricity | Up to 0.003mm |
Parallelism | Up to 0.002mm |
The inner hole tolerance | The minimum 0.005mm |
Straight flute | The narrowest 0.1x100mm |
The thickness of the size | Minimum to 0.02mm |
The screw thread | Minimum internal thread M2 |
Cylindricity | Up to 0.004mm |
The linear tolerance | Up to 0.001mm |
The smallest aperture | The minimum 0.07mm |
Precision process | CNC maching,grinding,lapping |
Surface finish | Glazed,polishing or metallized |
Visual quality: | |
Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic rod,tube,bar or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics
