High heat rod ceramic rod wear insulator high temperature resistant alumina zirconia ceramic rods
Materials：Alumina (Al2O3)/ Zirconia(ZrO2) /Si3N4 /SiC ...etc
Sizes：Mini OD: 0.02mm; Max length: 500mm
Delivery times：2 -25 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Customized：Can be custom for special sizes and shapes
Ceramic plates sheet substrate disc series

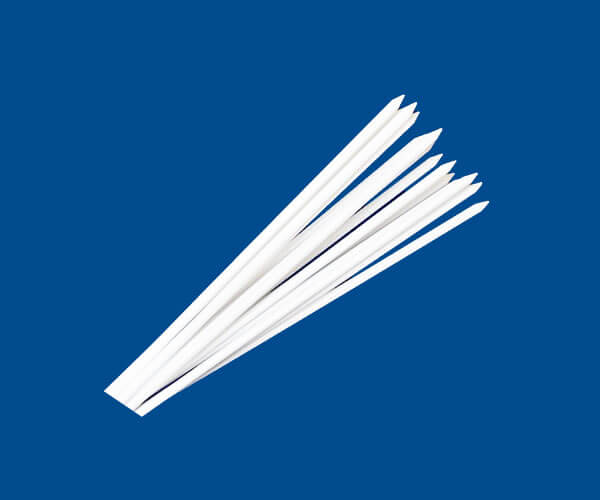

High Heat Rod Ceramic Rod Wear Insulator High Temperature Resistant Ceramic Rods
High temperatures ceramic rod has the characteristics of wear insulator high temperature resistant with the excellent ceramics.
We can manufacture the available sizes of ceramic rods range from 0.020” to 19.68” (0.50mm – 500.00mm). In stocked rods available from 0.011″ to 1.350″ (0.28mm to 34.29mm).the length of machinable ceramic rods and specials sizes can be customized. Get a Quotation Now!!!
Materials:
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide
· Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
Parts of ceramics like below:
Al2O3 Alumina ceramics up to 1800℃（3272℉）high temperature resistance
ZrO2 Zirconia ceramics up to 1500℃（2732℉）high temperature resistance
SiC Silicon carbide ceramics up to 1500℃（2732℉）high temperature resistance
Si3N4 Silicon Nitride ceramics up to 1600℃（2912℉）high temperature resistance
The properties of alumina/ zirconia ceramics
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength, Wear Resistance Up To Mohz 9.0; HRA 80-90...
3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Life...
9. Other excellent property

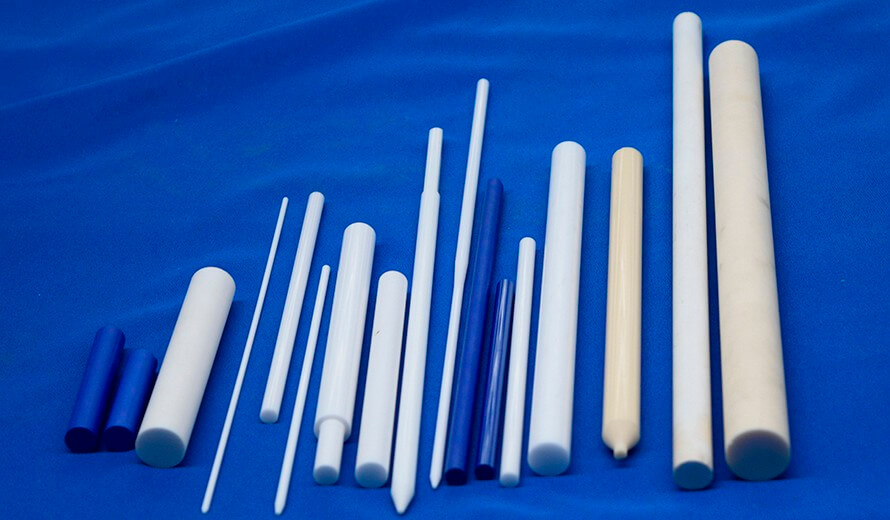

The type of ceramic rod
Cylindrical, Square, Screw Threadand, Porous...
Shaft,Plunger Rod,Piston Rod,Cylinder Rod,Insulating Rod,Heat Conducting Bar,sharpening rod,honing rod...
High heat and temperature resistant
The ceramic have a excellent high heat temperature resistant ability. Ceramic can be used under 1800 ℃ high temperature environment.Coefficient of thermal expansion up to 13* 10∧6 from 20°C -1000°C. up to 2800°C Melting point.
Tip:
For different industries, equipment,and environment, ceramic rods have different function,We can manufacturing ceramic rod by drawing, such as surface polishing, internal and external pipe wall threads, metal parts bonded, different shapes etc by custom requirement.
The general specifications service
1. Factory price with a discounts
2. Fast shipment within 24 hours
3. In stocks for hot sales sizes
4. MOQ:1qty
5. Online service
The Custom service
1. Can be custom for special sizes by drawing
2. Can offer a samples within 2 days
3. The delivery time within 20 days after confirmed the order
4. Factory price and Senior ceramic engineer service
5. Online service
>Ceramic materials(include but not limited belows)
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide
· Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)...
| Al2O3 | ZrO2/Y2O3 | ZrO2/MgO | MgO | SiC | Si3N4 Reaction sintered | Si3N4 Hot pressed | ALN | |
| Physical properties | ||||||||
| Density (g/cm³) | 3,9 | 5,9 | 5,75 | 3,58 | 3,2 | 3,27 | 3,29 | 3,26 |
| Molecular weight (g/mole) | 102 | - | - | 40,4 | 40,1 | 140 | 140 | 41 |
| Maximum service temperature air (°C) | 1700- 1800 | 1500 | 1000 | 2200 | 1500 | 1200- 1500 | 1100- 1600 | 1000- 1800 |
| Mechanical properties | ||||||||
| Hardness (Mohs) | 9 | - | - | 5,5 | 9 | - | - | 7 |
| Modulus of elasticity (GPa) | 300-400 | 200 | 200 | 250-300 | 420 | 170-220 | 280-310 | 318 |
| Poisson's ratio | 0,25 | - | - | 0,18 | 0,14 | 0,25-0,26 | 0,27 | 0,25 |
| Fracture toughness (MPa.m1/2) | 2-3 | 7-13 | 6-10 | - | 2,5-3,5 | 3,5-5 | 6,1 | 4,5 |
| Electrical properties | ||||||||
| Dielectric constant | 9-10 | - | - | 9-10 | - | 10 | 10 | 9,2 |
| Electrical resistivity at 20°C (Ohm.cm) | >10 14 | 10 13-10 14 | >10 10 | - | 10 2-10 6 | >10 7 | 10 12- 10 15 | >10 14 |
| Dielectric strength (kV/mm) | 10-20 | 9 | 2-10 | - | - | - | - | 15 |
| Thermal properties | ||||||||
| Specific heat (J/K/kg) | 900 | 400-500 | 420 | 870-880 | 750 | 690 | 680-800 | 800 |
| Thermal conductivity (W/m/K) at 20°C | 26-35 | 2,2-3,2 | 1,5-2,5 | 40-50 | 63-155 | 9-30 | 15-43 | 180 |
| Coefficient of thermal expansion ( 10-6) from 20 to 1000°C | 8-9 | 10-11 | 5-16 | 10-13 | 4-5 | 3 | 3,3 | 4,4-5,3 |
| Melting point (°C) | 2050 | 2590 | - | 2800 | 2500 | 1900 | 1900 | 2200 |
Customization & Machining Service:
As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!! or up a files by EMAIL.
Our Custom Capabilities:
1.High Purity Martoxid Powder
2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
3.35000 ㎡workshop, annual output could reach hundred million pieces.
4.All crafts are inspected strictly based on drawings,checked each month.
5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
| Technical reference of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
Feedback
1. For any query or doubt, please contact us firstly, we will update with you soon;
2. For any other satisfaction, please also feedback to us, which could improve our service better and better.
For more information about ceramics parts,please contact our engineers in time >>>
