Alumina Ceramic Hydrocyclone Ceramic Cyclone
Materials：Alumina Al2O3/ Silicon Carbide SiC / ZrO2/ Si3N4etc
Sizes：Max Length:4000mm
Delivery times：2 -35 days(depends on the quantity)
Precision：Ra 0.1um tolerance: 0.001mm... etc
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Customized：Can be custom for special sizes and shapes
Product Details

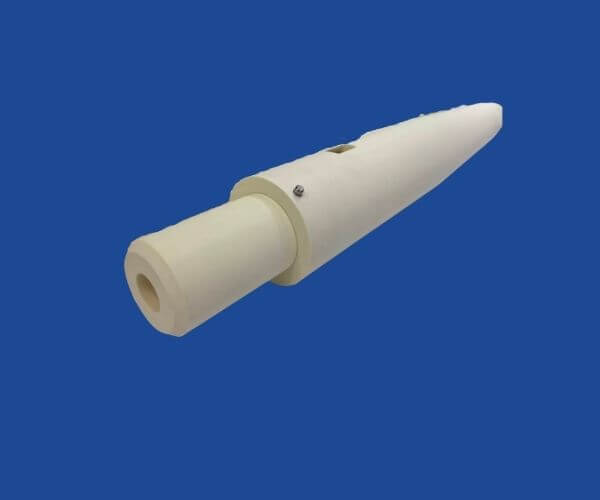

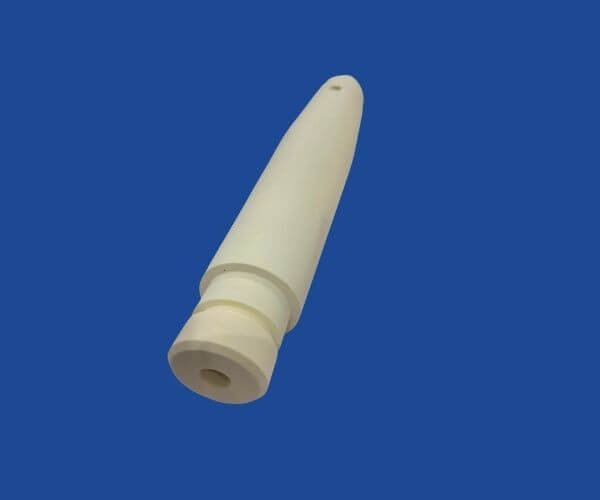

Alumina Ceramic Hydrocyclone Ceramic Cyclone Manufacturer
Alumina ceramic hydrocyclones and ceramic cyclones are used in industrial separation systems to separate solid particles from liquids or, depending on the equipment design, to separate different phases in a fluid stream. Common applications include sand removal, abrasive slurry separation, and fluid processing in the oil and gas, mining, and chemical industries.
Alumina ceramic components provide excellent hardness, wear resistance, and corrosion resistance in demanding operating environments.These properties make alumina one of the suitable materials for ceramic hydrocyclones and ceramic cyclones. For applications involving severe wear and highly corrosive conditions, silicon carbide (SiC) is also an excellent material option.
If you have any questions or requirements, please feel free to contact us at:[email protected]
Applications of Alumina Ceramic Hydrocyclones & Ceramic Cyclones:
Oil and Gas Processing
Sand Removal in Oilfield Systems
Solid-Liquid Separation
Mining and Mineral Processing
Abrasive Slurry Classification
Chemical Processing
Industrial Fluid Separation
Removal of Suspended Particles from Process Fluids
Wear-Resistant Components for Abrasive Environments
Corrosion-Resistant Components for Aggressive Media
Typical properties of alumina:
| Material | Alumina | ||||||
|---|---|---|---|---|---|---|---|
| Properties | Units | 99.99% Al2O3 | 99.7% Al2O3 | 99.5% Al2O3 | 99% Al2O3 | 97% Al2O3 | 95% Al2O3 |
| Color | — | White | Ivory | Ivory | Ivory | White | White |
| Permeability | — | Gas-tight | Gas-tight | Gas-tight | Gas-tight | Gas-tight | Gas-tight |
| Density | g/cm³ | 3.95 | 3.94 | 3.9 | 3.8 | 3.75 | 3.7 |
| Straightness | ‰ | 1 | 1 | 1 | 1 | 1 | 1 |
| Hardness | Mohs Scale | 9 | 9 | 9 | 9 | 8.9 | 8.8 |
| Water Absorption | % | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Bending Strength (Typical 20℃) | MPa | 375 | 375 | 370 | 340 | 320 | 304 |
| Compressive Strength (Typical 20℃) | MPa | 2300 | 2300 | 2300 | 2210 | 2100 | 1910 |
| Max Working Temperature | ℃ | 1750 | 1750 | 1750 | 1700 | 1650 | 1500 |
| Coefficient of Thermal Expansion (25℃ to 800℃) | 10-6/℃ | 8 | 7.8 | 7.8 | 7.7 | 7.6 | 7.5 |
| Fracture Toughness | MPa·m1/2 | 4.4 | 4.3 | 4.3 | 4.2 | 4 | 3.8 |
| Dielectric Strength (5mm Thickness) | AC-kV/mm | 9 | 8.7 | 8.7 | 8.7 | 8.5 | 8.3 |
| Dielectric Loss (25℃ @1MHz) | — | < 0.0001 | < 0.0001 | < 0.0001 | 0.0001 | 0.0002 | 0.0002 |
| Dielectric Constant (25℃ @1MHz) | — | 9.8 | 9.7 | 9.7 | 9.5 | 9.3 | 9.2 |
| Electrical Resistivity (25℃) | Ω·mm²/m | >1014 | >1014 | >1014 | >1014 | >1014 | >1014 |
| Thermal Conductivity (25℃) | W/m·K | 30 | 30 | 30 | 29 | 27.5 | 25 |
This chart just demonstrates the typical properties of common alumina materials we use to produce our alumina parts. Please notice that the property for customized alumina parts could vary due to different process.
Manufacturing Capability:
| Precision of manufacture | |
| Dimensional accuracy | Up to 0.001mm |
| Smoothness | Highest possible mirror |
| Concentricity | Up to 0.003mm |
| Parallelism | Up to 0.002mm |
| The inner hole tolerance | The minimum 0.005mm |
| Straight flute | The narrowest 0.1x100mm |
| The thickness of the size | Minimum to 0.02mm |
| The screw thread | Minimum internal thread M2 |
| Cylindricity | Up to 0.004mm |
| The linear tolerance | Up to 0.001mm |
| The smallest aperture | The minimum 0.07mm |
| Precision process | CNC maching,grinding,lapping |
| Surface finish | Glazed,polishing or metallized |
| Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface | |
Customization & Machining Service
As a professional manufacturer of industrial ceramic components.We can custom the sepcial specifications of ceramic cyclones or other ceramic parts.High quality,Factory price, on-time delivery, High composition of ceramics
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-10 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
