Custom Ceramic Nozzles | Alumina, ZrO2, SiC, Si3N4 Ceramic Nozzle
Materials：Alumina, Zirconia, Silicon Carbide, Silicon Nitride, AlN
Sizes：Mini ID:0.3mm
Delivery times：3 - 35 days(depends on the quantity)
Precision：Ra 0.1um, tolerance: 0.001mm
Features：Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Customized：Can be custom for special sizes and shapes
Product Details

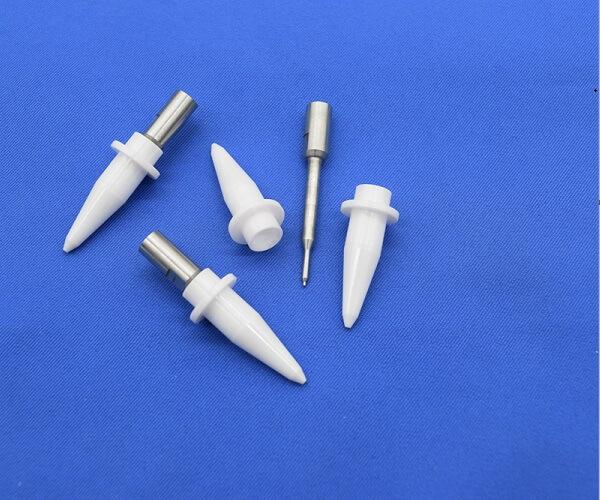

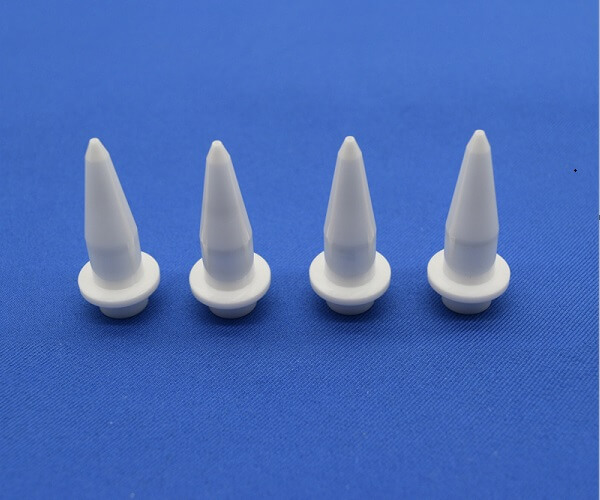

Custom Ceramic Nozzles | Alumina, ZrO2, SiC, Si3N4 Ceramic Nozzle Mnufacturer
Ceramic nozzlesare precision parts made of advanced ceramics (e.g., alumina, zirconia, SiC).Their primary function is to precisely control the direction, velocity, and spray pattern of liquids or gases under a wide range of demanding industrial conditions.
Mingrui Ceramic provides custom ceramic nozzles manufactured from different ceramic materials and can be selected according to specific working conditions. Alumina ceramic nozzles provide excellent electrical insulation and wear resistance, while silicon carbide ceramic nozzles offer superior corrosion resistance and high-temperature stability. Silicon nitride and zirconia ceramics are suitable for applications requiring high strength, thermal shock resistance, and mechanical durability.Send us your ceramic nozzle drawings and get a quote.
Ceramic Nozzle Manufacturing Capabilities
Ceramic Materials Available: (95-99.99%)Alumina, Zirconia, Silicon Carbide, Silicon Nitride, Aluminum Nitride
Outer Diameter: Customized according to drawings
Inner Diameter: 0.3mm
Long Term Operating Temperature: Up to 1750°C depending on material
Surface Finish: 0.1μ
Tolerance: Up to 0.001mm depending on material and structure
Comparison of Different Ceramic Nozzle Materials
Different ceramic materials offer different performance characteristics. The selection of ceramic nozzle materials depends on the operating temperature, wear conditions, chemical environment, and mechanical requirements.
| Material | Advantages | Limitiations | Typical Applications |
| Alumina Al2O3 Ceramic Nozzle | Excellent wear resistance, electrical insulation, chemical stability, cost-effective | Lower fracture toughness compared with zirconia and silicon nitride | Welding nozzles, insulation nozzles, gas nozzles, general industrial applications |
| Zirconia ZrO2 Ceramic Nozzle | High fracture toughness, excellent impact resistance, good wear resistance | Higher material cost, lower thermal conductivity | Precision nozzles, abrasive media nozzles, applications requiring high mechanical strength |
| Silicon Carbide Ceramic Nozzle (SiC) | Outstanding hardness, corrosion resistance, high-temperature performance, thermal conductivity | More difficult machining, relatively brittle | Chemical spray nozzles, furnace nozzles, desulfurization nozzles, high-temperature applications |
| Silicon Nitride Ceramic Nozzle (Si₃N₄) | High strength, excellent thermal shock resistance, low thermal expansion | Higher cost than alumina | Molten metal nozzles, burner nozzles, high-temperature industrial equipment |
| Aluminum Nitride Ceramic Nozzle (AlN) | Excellent thermal conductivity and electrical insulation | Lower wear resistance compared with SiC | Semiconductor and electronic equipment applications |
Ceramic Nozzle Applications
Ceramic nozzles are used in a wide range of industrial applications where wear resistance, thermal stability, corrosion resistance, and precision performance are required.
Surface treatment processes: such as sandblasting, rust removal, and descaling, ceramic nozzles provide excellent resistance to abrasive wear caused by high-speed particles. Compared with conventional metal nozzles, ceramic materials offer significantly longer service life and more stable performance under continuous abrasion.
High-temperature manufacturing applications: including metal melting and amorphous metal ribbon production, ceramic nozzles can maintain structural stability under extreme thermal conditions. With excellent heat resistance, certain ceramic materials can withstand operating temperatures above 1380°C while maintaining reliable performance.
Chemical processing and fluid control systems: such as chemical reactors and flue gas desulfurization (FGD) equipment, ceramic nozzles provide outstanding resistance to corrosion from many acids and alkaline solutions. Their chemical stability makes them suitable for demanding environments where metal components may suffer from rapid degradation.
Precision dispensing and semiconductor manufacturing: ceramic nozzles offer smooth internal surfaces, excellent dimensional accuracy, and consistent flow control. It is important in precise material dispensing in applications such as chip packaging, electronic assembly, and other high-precision manufacturing processes.
FAQs:
1. Are ceramic nozzles better than metal nozzles?
Ceramic nozzles generally provide better wear resistance, corrosion resistance, and temperature stability compared with many metal nozzles. It comes with a higher cost but a longer service life.
2. Can you make custom ceramic nozzles?
Sure. We can customize ceramic nozzles strictly according to your drawings and requirements.
3. How are ceramic nozzles manufactured?
Ceramic nozzles are manufactured through processes including powder preparation, ceramic forming, sintering, precision grinding, CNC machining, quality inspection&testing, ultrasonic cleaning and packaging.
4. How can I contact you for some pre-sales questions, requirements or technical support?
For any questions or requirements, please feel free to contact us at:[email protected]
