Semiconductor ceramic
As a semiconductor ceramic parts munafacturer.
us offer custom ceramic parts for semiconductor industry
Semiconductor ceramic parts has high temperature resistance, heat insulation, high hardness and wear resistance. In terms of electrical properties, it has insulation, piezoelectricity, semiconductivity, magnetic properties, etc. It is chemically catalyzed, resistant to corrosion, and adsorbed.
Option Ceramic Material:
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide SiC   · Silicon Nitride Si3N4
· TTZ/YTZP/ZDY Zirconia (ZrO2)


Sample Semiconductor Ceramic Applications:
-Chamber Rings       -CMP Pad Conditioners
-Crystal Growth Crucibles        -E-chucks
-Edge Chamber Components

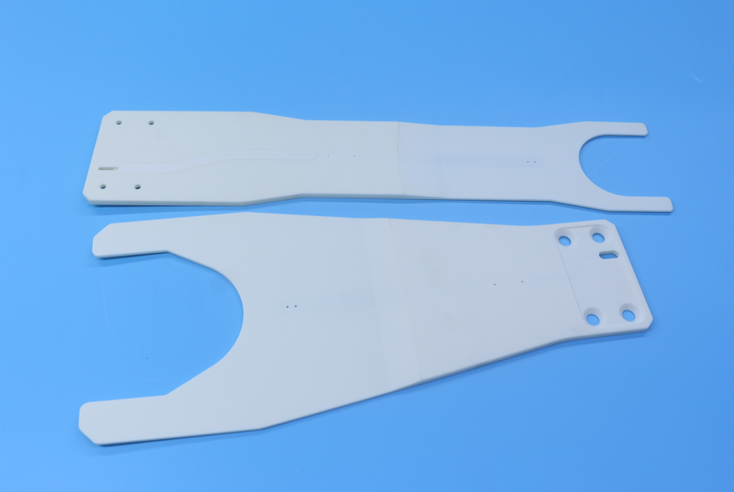

-End Effectors                          -Feed-throughs
-Heater Assemblies                 -Heaters
-Ion Beam Systems                 -Lift Pins
-Paddles      -Pin Chucks         -Power Supplies
-RTP Edge Rings                  -Sputtering Targets
-Wafer Clamps  - Others


For more detail of semiconductor ceramic parts like price,shipping,samples...
Please contact our engineer soon. Quick Free Quote . Our official E-mail: admin@cerampart.com (Mr admin)
Free quotes notice:
  • 2020/10/11 - Romania - What's the price for 4"x4"x0.12" (100 mm x 100 mm x 3 mm

    2020/10/11 - Greece - We are looking Ceramic Cylinder. We need 3 pcs item and one repair kit

    2020/10/11 - Italy - Hi We require some ceramic machinery parts for a pump

    2020/10/11 - Spain - Please send updated price list of ceramic welding pins

    2020/10/11 - Germany - I want to buy alumina ceramic tubes: length 250 - 500 mm, OD: ~ 6mm,

    2020/10/08 - Anguilla - Hi i need blue pins but i need my dimensiones.I could send You a drawin

    2020/10/08 - Canada - Hello I am looking for a replacement shaft part for this machine

    2020/10/08 - America - Good day,Please kindly quote us,ceramic ball bearing

    2020/10/08 - Islands - I have drawings for small aluminum parts I would like you to quote on.

    2020/10/08 - Mexico - Dear mam,we have requirement of component attached with this mail.

    2020/10/08 - America - I need this ceramics modling plate to test in a new design machined too

    2020/10/08 - Canada - Hello.I need a sample of 96%Al2O3 bushing...

    2020/10/07 - Turkey - looking for valves with channel .4mm

    2020/10/07 - India - 99 Alumina Ceramic Tube height: 9mmwidth: 10mmhole:

    2020/10/07 - Philippines - Greetings 10 mm outer 5 mm inner 30 mm long piston spindle required pri

    2020/10/07 - Singapore - Hi, I'm looking for Ceramic threaded rod, ØM6 x 45mm Length.

    2020/10/07 - Malaysia - We are in need of thin alumina sheets of dimension 101.5 x 230 mm.

    2020/10/06 - Thailand - Hello,I'm looking for cylinders made of alumina ceramic...

    2020/10/06 - Malaysia - I need for my scientific researh to buy about 10 ceramic rods with

    2020/10/06 - Singapore - we want to purchase porous ceramic rods size 1mm to 1.25 mm round.

    2020/10/06 - Korea - Hi, we have 2 end effects that we need qty 2 of each. Thanks

    2020/10/06 - Japan - working temperature over 1200℃ plate I'm looking for 3 pieces

    2020/10/05 - Ireland - how much a few (60) samples of heat resistant ceramic plates

    2020/10/05 - Switzerland - Dear We need your price offer for blue ZrO2 ceramic centering pins

    2020/10/05 - Germany - Hi I am looking for a ceramic impellar rod with rubber cap

    2020/10/05 - Poland - we are interested in thicker plates that range from 2 mm to 3 mm

    2020/10/05 - Russia - We would be interested in plates with a thickness of 1mm. If possible,

    2020/10/05 - Brazil - Good dayI am interested i a small of ceramicplate about 120 mm long and

    2020/10/05 - Colombia - Please send the quote for Alumina rod size 3.17mm dia x 40 mm length

    2020/09/28 - America - Please send me fob price on White Alumina Ceramic Rod Porcelain Parts

  • Related Products:
    All 1page12records
    • Ceramic materials(include but not limited belows)
      · 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride  · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
      · YTZP: Yttria partially stabilized Zirconia (ZrO2)   · ZDY: Yttria fully stabilized Zirconia (ZrO2)...



      Al 23
      ZrO2/Y2O3 ZrO2/MgO MgO SiC Si3N4 Reaction sintered Si3N4 Hot pressed ALN
      Physical properties
      Density (g/cm3) 3,9 5,9 5,75 3,58 3,2 3,27 3,29 3,26
      Molecular weight (g/mole) 102 - - 40,4 40,1 140 140 41
      Maximum service temperature air (°C) 1700- 1800 1500 1000 2200 1500 1200- 1500 1100- 1600 1000- 1800
      Mechanical properties
      Hardness (Mohs) 9 - - 5,5 9 - - 7
      Modulus of elasticity (GPa) 300-400 200 200 250-300 420 170-220 280-310 318
      Poisson's ratio 0,25 - - 0,18 0,14 0,25-0,26 0,27 0,25
      Fracture toughness (MPa.m1/2) 2-3 7-13 6-10 - 2,5-3,5 3,5-5 6,1 4,5
      Electrical properties
      Dielectric constant 9-10 - - 9-10 - 10 10 9,2
      Electrical resistivity at 20°C (Ohm.cm) >10 14 10 13-10 14 >10 10 - 10 2-10 6 >10 7 10 12- 10 15 >10 14
      Dielectric strength (kV/mm) 10-20 9 2-10 - - - - 15
      Thermal properties
      Specific heat (J/K/kg) 900 400-500 420 870-880 750 690 680-800 800
      Thermal conductivity (W/m/K) at 20°C 26-35 2,2-3,2 1,5-2,5 40-50 63-155 9-30 15-43 180
      Coefficient of thermal expansion ( 10-6) from 20 to 1000°C 8-9 10-11 5-16 10-13 4-5 3 3,3 4,4-5,3
      Melting point (°C) 2050 2590 - 2800 2500 1900 1900 2200


    • Ceramics are oxides, carbides, nitrides and borons of metal ions. Generally speaking, they are inorganic and non-metallic. Ceramics play an important role in our daily life. The development of ceramics has helped to reduce industrial demand. Compared with other materials, ceramics have some unique properties.
      Physical Properties:
      ·Volume

      ·Density
      ·Melting point
      ·Boiling point
      ·Heat capacity
      ·Index of reflection
      ·Porosity (also we refer pore size)
      Mechanical Properties:
      ·compressive strength
      ·shear strength
      ·fracture toughness
      ·elasticity or plasticity
      ·ductility
      ·Hardness

      Electrical Properties:
      ·dielectric strength
      ·electrical conductivity
      ·insulating properties
      ·semiconducting properties
      ·superconducting properties
      ·dielectric constant

      Thermal Properties:
      ·insulating properties
      ·semi-conducting properties
      ·thermal conductivity
      ·thermal expansion
      ·thermal shock resistance
      Chemical Properties:
      ·alkali attack resistance
      ·acid attack resistance
      ·corrosion resistances


      Other ceramic properties...

      Know more details of the ceramics property, contact us : admin@cerampart.com


    • Customization & Machining Service:
      As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!!  or up a files by (email:admin@cerampart.com).

      Our Custom Capabilities:
      1.High Purity Martoxid Powder
      2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
      3.35000 ㎡workshop, annual output could reach hundred million pieces.
      4.All crafts are inspected strictly based on drawings,checked each month.
      5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
      Technical reference of manufacture
      Dimensional accuracy Up to 0.001mm
      Concentricity Up to 0.003mm
      Parallelism Up to 0.002mm
      The inner hole tolerance The minimum  0.005mm
      Straight flute The narrowest 0.1x100mm
      The thickness of the size Minimum to 0.02mm
      The screw thread Minimum internal thread M2
      Cylindricity Up to 0.004mm
      The linear tolerance Up to 0.001mm
      The smallest aperture The minimum 0.07mm
      Precision process CNC maching,grinding,lapping
      Surface finish Glazed,polishing or metallized


    • The general specifications service
      1. Factory price with a discounts
      2. Fast shipment within 24 hours
      3. In stocks for hot sales sizes
      4. MOQ:1qty
      The Custom service
      1. Can be custom for special sizes by drawing
      2. Can offer a samples within 2 days
      3. The delivery time within 20 days after confirmed the order
      4. Factory price and Senior ceramic engineer service
      FAQ
      1. Monthly Capacity: 50,000-60,000 pcs;
      2. Material: OEM or as per your suggestion;
      3. Lead time: about 7-20 days, pls confirm the quantities required;
      4. Incoterm: FOB, CFR, CIF;etc
      5. Delivery Cost: It is determinated by the destination port;
      6. Payment Term: PayPal; T/T; L/C; etc.
      7. Shipment: by sea, by air, by courier, by post, etc.
