Ceramic Tube / Ceramic Rod / Ceramic Plate / Ceramic Valve / Ceramic Plunger / Ceramic Pump Manufacturer

Focus on Alumina / Zirconia ceramic parts R&D and production

+86 -181 2297 4730

Email:admin@cerampart.com

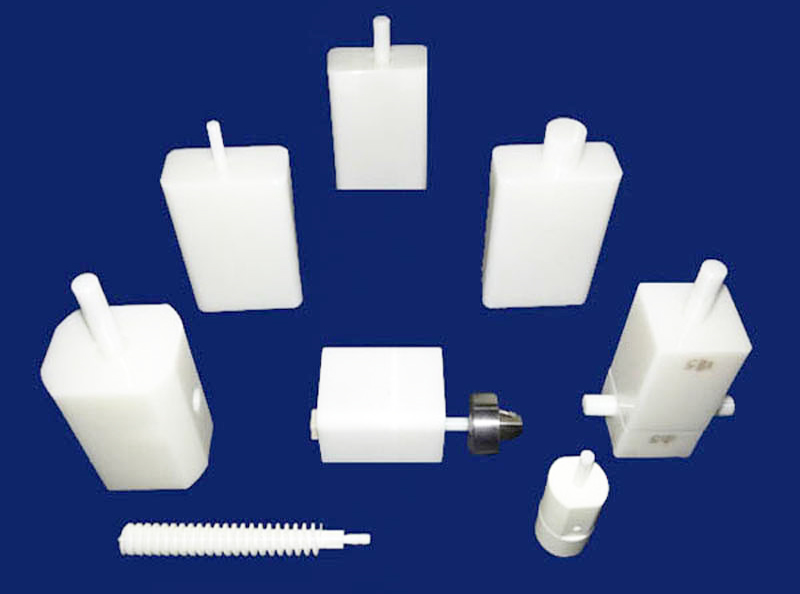

Lithium battery ceramic part

Lithium Battery ceramic parts





Product range:
Li-battery filling pump, Dialyzer ceramic pump, Li-battery ceramic cutter, Automotive Li-battery filling pump, Li-battery ceramic metering pump, Electrolyte ceramic pump.
Performance standard:
Superior Wear resistance, Corrosion resistant, High-temperature resistance ,long service life, superior sealing.
Material standard:
High precision,High HV hardness, Resistance to acid alkaline, Good fracture toughness.

For more information about ceramics,please contact our engineers in time

Free quotes notice:
  • 2020/08/05 - Thailand - good morning, how much the 130mm length the ceramic tube rods...

    2020/08/04 - Switzerland - hi, the delivery time of the customized high temperatures resistance ce

    2020/08/05 - Germany - hi deng, the price of the customized the 0.3mm tolerance ceramic plate

    2020/08/05 - Canada - good morning, 0.12'' id ceramic bushing 2'' lengh ceramic rod i need th

    2020/08/05 - America - hello, i want to made a sample for custom ceramic parts...

    2020/08/04 - Spain - goods guy, i need some sample to custom a ceramic engineering parts...

    2020/08/04 - Slovenia - hello, l am interested in the ceramic pin for the weldings...

    2020/08/04 - Singapore - hi, 0.3'' od 0.26''id 2' length ceramic tube for pump liner...

    2020/08/04 - Sweden - hello everyone, i need the 105mm length ceramic shaft for gears...

    2020/08/04 - Australia - hi, do you have a High thermal conductivity ceramic plates for electron

    2020/08/04 - Malaysia - good morning, i looing for the insulating ceramic plate 110*90*1mm...

    2020/08/04 - Italy - can i custom a 0.15 Tolerance of ceramic sleeve??

    2020/08/04 - Germany - i want to custom the 0.5 tolerance ceramic parts like a sheet with scre

    2020/08/04 - Canada - i need a high hardness ceramic rod and 0.22'' od ceramic tubes...

    2020/08/03 - America - hi, i want to know the price of the 230*150*0.5mm ceramic plates...

    2020/08/03 - America - hello sir, 0.21'' id 230mm zirconia ceramic tube i need them...

    2020/08/02 - Finland - hello deng. do you can send the fob of custom ceramic part to us now?

    2020/08/02 - Italy - hi sir, i want find the factory to make the ceramic sample parts...

    2020/08/02 - Australia - good morning admin, i want to know the price of the ceramic sealing par

    2020/08/02 - Canada - good afternoon, i looking for the 0.43'' od ceramic bushing for the met

    2020/08/02 - America - hello, do you have the flat ceramic washer with 0.62'' id ??

    2020/08/01 - England - Please send me the ceramic arm at CIF price...

    2020/08/01 - Japan - Do you support custom ceramic wafer for the semiconductor industry?

    2020/08/01 - Canada - good days, how much the ceramic standoffs ?

    2020/08/01 - Denmark - i am looking for the ceramic part with high thermal shocks...

    2020/08/01 - Australia - good morning deng, Please send me FOB price for 0.55'' id flat ceramic

    2020/08/01 - Italy - I need FOB price for high strength ceramic seal ring for the engineerin

    2020/08/01 - Germany - hello admin, 0.32''id 0.42''od ceramic tubes i need the prices...

    2020/08/01 - America - hello sir, i am interested in the 200mm ceramic tube for grill...

    2020/08/01 - America - hi good evening, i am looking for the ceramic tube for rings...

  • Related Products:
    All 1page9records
    • Ceramic materials(include but not limited belows)
      · 95%--99.99% Alumina (Al2O3)   · Silicon Carbide   · Silicon Nitride  · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
      · YTZP: Yttria partially stabilized Zirconia (ZrO2)   · ZDY: Yttria fully stabilized Zirconia (ZrO2)...



      Al 23
      ZrO2/Y2O3 ZrO2/MgO MgO SiC Si3N4 Reaction sintered Si3N4 Hot pressed ALN
      Physical properties
      Density (g/cm3) 3,9 5,9 5,75 3,58 3,2 3,27 3,29 3,26
      Molecular weight (g/mole) 102 - - 40,4 40,1 140 140 41
      Maximum service temperature air (°C) 1700- 1800 1500 1000 2200 1500 1200- 1500 1100- 1600 1000- 1800
      Mechanical properties
      Hardness (Mohs) 9 - - 5,5 9 - - 7
      Modulus of elasticity (GPa) 300-400 200 200 250-300 420 170-220 280-310 318
      Poisson's ratio 0,25 - - 0,18 0,14 0,25-0,26 0,27 0,25
      Fracture toughness (MPa.m1/2) 2-3 7-13 6-10 - 2,5-3,5 3,5-5 6,1 4,5
      Electrical properties
      Dielectric constant 9-10 - - 9-10 - 10 10 9,2
      Electrical resistivity at 20°C (Ohm.cm) >10 14 10 13-10 14 >10 10 - 10 2-10 6 >10 7 10 12- 10 15 >10 14
      Dielectric strength (kV/mm) 10-20 9 2-10 - - - - 15
      Thermal properties
      Specific heat (J/K/kg) 900 400-500 420 870-880 750 690 680-800 800
      Thermal conductivity (W/m/K) at 20°C 26-35 2,2-3,2 1,5-2,5 40-50 63-155 9-30 15-43 180
      Coefficient of thermal expansion ( 10-6) from 20 to 1000°C 8-9 10-11 5-16 10-13 4-5 3 3,3 4,4-5,3
      Melting point (°C) 2050 2590 - 2800 2500 1900 1900 2200


    • Ceramics are oxides, carbides, nitrides and borons of metal ions. Generally speaking, they are inorganic and non-metallic. Ceramics play an important role in our daily life. The development of ceramics has helped to reduce industrial demand. Compared with other materials, ceramics have some unique properties.
      Physical Properties:
      ·Volume

      ·Density
      ·Melting point
      ·Boiling point
      ·Heat capacity
      ·Index of reflection
      ·Porosity (also we refer pore size)
      Mechanical Properties:
      ·compressive strength
      ·shear strength
      ·fracture toughness
      ·elasticity or plasticity
      ·ductility
      ·Hardness

      Electrical Properties:
      ·dielectric strength
      ·electrical conductivity
      ·insulating properties
      ·semiconducting properties
      ·superconducting properties
      ·dielectric constant

      Thermal Properties:
      ·insulating properties
      ·semi-conducting properties
      ·thermal conductivity
      ·thermal expansion
      ·thermal shock resistance
      Chemical Properties:
      ·alkali attack resistance
      ·acid attack resistance
      ·corrosion resistances


      Other ceramic properties...

      Know more details of the ceramics property, contact us : admin@cerampart.com


    • Customization & Machining Service:
      As a ceramic parts manufacturer,us offer a wide of the ceramic specification,and customized&machinables. Get a Quote On Your Customized Now!!  or up a files by (email:admin@cerampart.com).

      Our Custom Capabilities:
      1.High Purity Martoxid Powder
      2.OEM Support, More Than 10 Technicians With 5-Year R&D Experience
      3.35000 ㎡workshop, annual output could reach hundred million pieces.
      4.All crafts are inspected strictly based on drawings,checked each month.
      5.Best Service And Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
      Technical reference of manufacture
      Dimensional accuracy Up to 0.001mm
      Concentricity Up to 0.003mm
      Parallelism Up to 0.002mm
      The inner hole tolerance The minimum  0.005mm
      Straight flute The narrowest 0.1x100mm
      The thickness of the size Minimum to 0.02mm
      The screw thread Minimum internal thread M2
      Cylindricity Up to 0.004mm
      The linear tolerance Up to 0.001mm
      The smallest aperture The minimum 0.07mm
      Precision process CNC maching,grinding,lapping
      Surface finish Glazed,polishing or metallized


    • The general specifications service
      1. Factory price with a discounts
      2. Fast shipment within 24 hours
      3. In stocks for hot sales sizes
      4. MOQ:1qty
      The Custom service
      1. Can be custom for special sizes by drawing
      2. Can offer a samples within 2 days
      3. The delivery time within 20 days after confirmed the order
      4. Factory price and Senior ceramic engineer service
      FAQ
      1. Monthly Capacity: 50,000-60,000 pcs;
      2. Material: OEM or as per your suggestion;
      3. Lead time: about 7-20 days, pls confirm the quantities required;
      4. Incoterm: FOB, CFR, CIF;etc
      5. Delivery Cost: It is determinated by the destination port;
      6. Payment Term: PayPal; T/T; L/C; etc.
      7. Shipment: by sea, by air, by courier, by post, etc.
